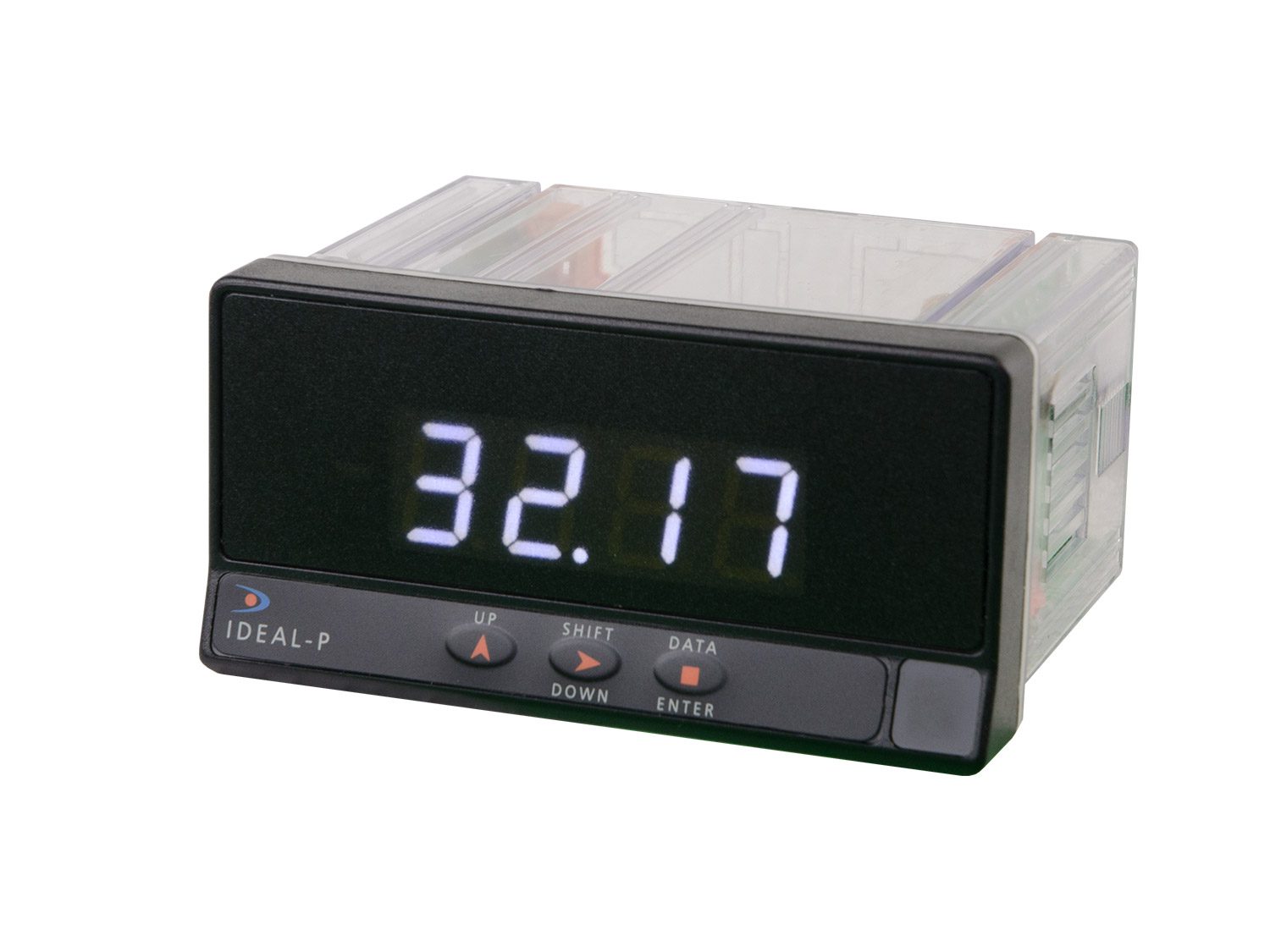

The Ditel IDEAL series refers primarily to the Ditel IDEAL‑P digital panel meter — a versatile, easy-to-use industrial indicator designed for basic process and temperature monitoring in control panels.
Standard DIN panel size: 96 × 48 mm format with bright white LED display for clear numeric indication.
Process signal measurement: Accepts industry-standard inputs such as ±10 VDC, ±200 V and ±20 mA, making it suitable for general analogue process monitoring.
Temperature inputs: Supports Pt100 RTD and common thermocouples (types J, K, T and N), so it can act as a simple temperature indicator when paired with suitable sensors.
Alarm & retransmission: Includes a single SPDT relay (8 A @ 250 VAC) for alarm/control functions, plus a 4-20 mA output that can be configured as a retransmission or setpoint generator to interface with other equipment.
Universal power supply: Designed to work from a wide AC/DC supply range, simplifying installation in varied electrical environments.
